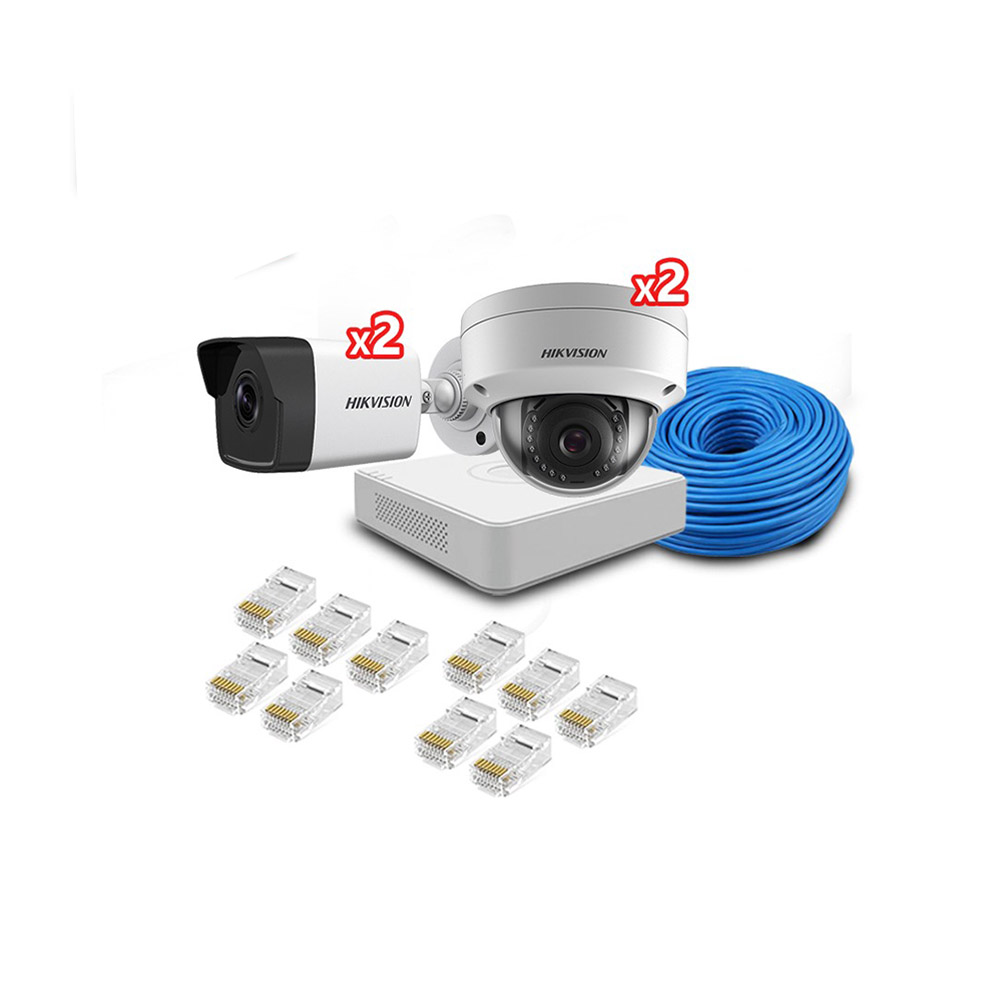

Hikvision 4 Channel IP Kit

4-ch Mini 4 PoE 1U NVR

• H.265+/H.265/H.264+/H.264 video compression
• Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
• Up to 4-ch network camera inputs
• Up to 4-ch 1080p decoding capability
• HDMI and VGA simultaneous output

• Video And Audio
• IP Video Input

  4-ch

  Up to 4 MP resolution

• Incoming Bandwidth40 Mbps
• Outgoing Bandwidth60 Mbps
• HDMI Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output ModeHDMI/VGA simultaneous output

• Decoding
• Decoding FormatH.265+/H.265/ H.264+/H.264
• Recording Resolution4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous Playback4-ch
• Decoding Capability4-ch@1080p (25 fps), 2-ch@4 MP (25 fps)
• Stream TypeVideo, Video & Audio

• Network
• Remote Connection16
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
• Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface

• PoE
• Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 36 W
• StandardIEEE 802.3 af/at

• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 6TB capacity for each disk
• Alarm In/OutN/A
• USB InterfaceRear panel: 2 × USB 2.0

• General
• Power Supply48 VDC, 1 A
• Consumption≤ 10 W
• Working Temperature-10 to +55º C (+14 to +131º F)
• Working Humidity10% to 90%
• Dimension (W × D × H)200 × 200 × 48 mm (7.9″ × 8.1″ × 1.9″)
• ≤ 1 kg (2.2 lb)

2 MP Fixed Bullet Network Camera

• High quality imaging with 2 MP resolution
• Efficient H.264 compression technology
• Clear imaging against strong back light due to DWDR technology
• Water and dust resistant (IP67)
• EXIR 2.0: advanced infrared technology with long IR range

• Camera
• Image Sensor1/2.7″ Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100, 000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

• Lens
• Focal Length & FOV

  2.8 mm, horizontal FOV 105°, vertical FOV 58°, diagonal FOV 123°

  4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 97°

• Lens MountM12
• Iris TypeFixed
• ApertureF2.0

• Illuminator
• Supplement Light RangeUp to 30 m
• Supplement Light TypeIR
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main Stream: H.264/H.264+

  Sub-Stream: H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• Region Of Interest (ROI)1 fixed region for main stream

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
