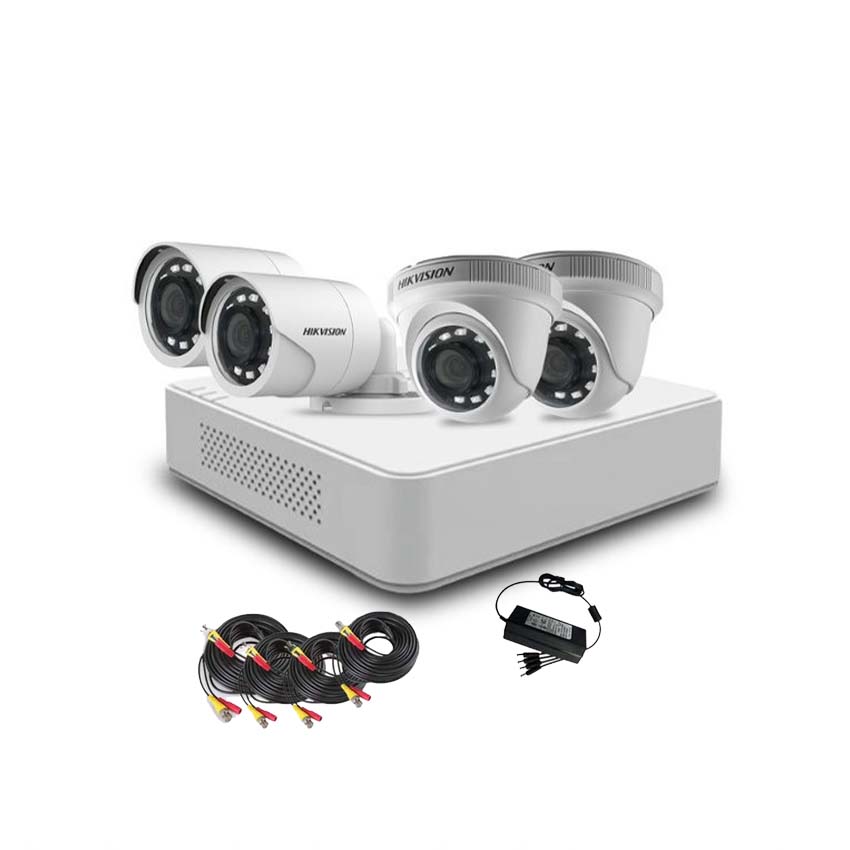

Hikvision 4 Channel Analog Kit 1080P

External Interface

• Network Interface1×100Mbps
• USB InterfaceRear panel: 2 × USB 2.0

• Video/Audio Input/Output
• Video InputHDTVI, AHD, CVI, CVBS, IP

Recording

• Encoding Resolution

When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF

When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF

• Frame Rate Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N) Sub-stream: 2CIF@6fps; CIF/QVGA/QCIF@25fps(P)/30fps(N)
• Audio Compression G.711u

Video And Audio

• IP Video Input

1-ch (up to 5-ch)

Up to 1080p resolution

H.264+/H.264

• Analog Video Input

4-channel

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
• VGA/HDMI Output1-ch, 1920 × 1080/60 Hz,1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz HDMI and VGA simultaneous output

Auxiliary Interface

Camera

• Lens70.9°, 3.6 mm
• Image Sensor1 MP CMOS image sensor

General

• Operating Condition

DS-2CE16C0T-IRP:-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

DS-2CE56C0T-IR:-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

DVR: -10 °C to 55 °C (14 °F to 131 °F), Humidity: 10% to 90%

• Power Consumption Max. 4 W
• Protection LevelDS-2CE16C0T-IRP: IP66
• IR Range Up to 20m

Dimensions

DS-2CE16C0T-IRP: Φ70 × 149.5 mm (Φ2.76 × 5.89 inch)

DS-2CE56C0T-IR:Φ89.5 × 69.8 mm (Φ3.52 × 2.75 inch)

DVR: 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

• DS-2CE16C0T-IRP: 300 g (0.66 lb)

DS-2CE56C0T-IR:280 g(0.62lb)

DVR: ≤ 1 kg (2.2 lb)

kit: ≤ 3.1 kg (6.9 lb)
