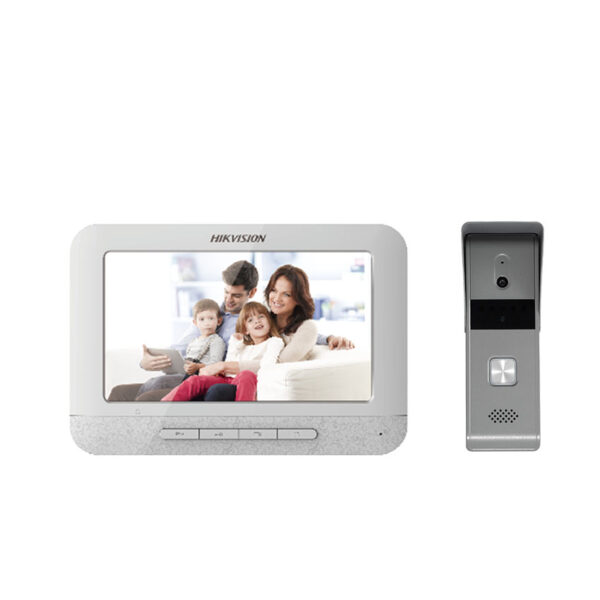

Hikvision Video Analog Door Phone Kit

Door Station/Video Parameters

• Camera1/4″ CMOS
• Resolution720 ? 576
• Video Frame Rate PAL: 25 fps

Door Station/Audio Parameters

• Audio Input Built-in Omnidirectional Microphone
• Audio Output Built-in Loudspeaker
• Audio Quality Noise Suppression and Echo Cancellation

Door Station/General

• Material Zinc Alloy
• Power Consumption Max. 5W
• Working Temperature-30? C to +70? C (-22? F to 158? F)
• Working Humidity10% to 90%
• Dimension (L X W X H)145 mm ? 49.2 mm ? 26.45 mm (5.7″ ? 1.9″ ? 1.0″)

Indoor Station/Display Parameters

• Display Screen7-Inch Colorful TFT LCD
• Display Resolution800 ? 480
• Operation Method Physical Button

Indoor Station/Audio Parameters

• Audio Input Built-in Omnidirectional Microphone
• Audio Output Built-in Loudspeaker
• Audio Quality Noise Suppression and Echo Cancellation

Indoor Station/Device Interfaces

• Four-Wire Interface

  4 Four-Wire Interfaces

  1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding

Indoor Station/General

• Power Supply 12 VDC
• Power Consumption ?5 W
• Working Temperature-10? C to + 55? C (14? F to 131? F)
• Working Humidity 10% to 90%
• Dimension (L X W X H)195.8 mm ? 132.8 mm ? 18.39 mm (7.7″ ? 5.2″ ?0.7″)
