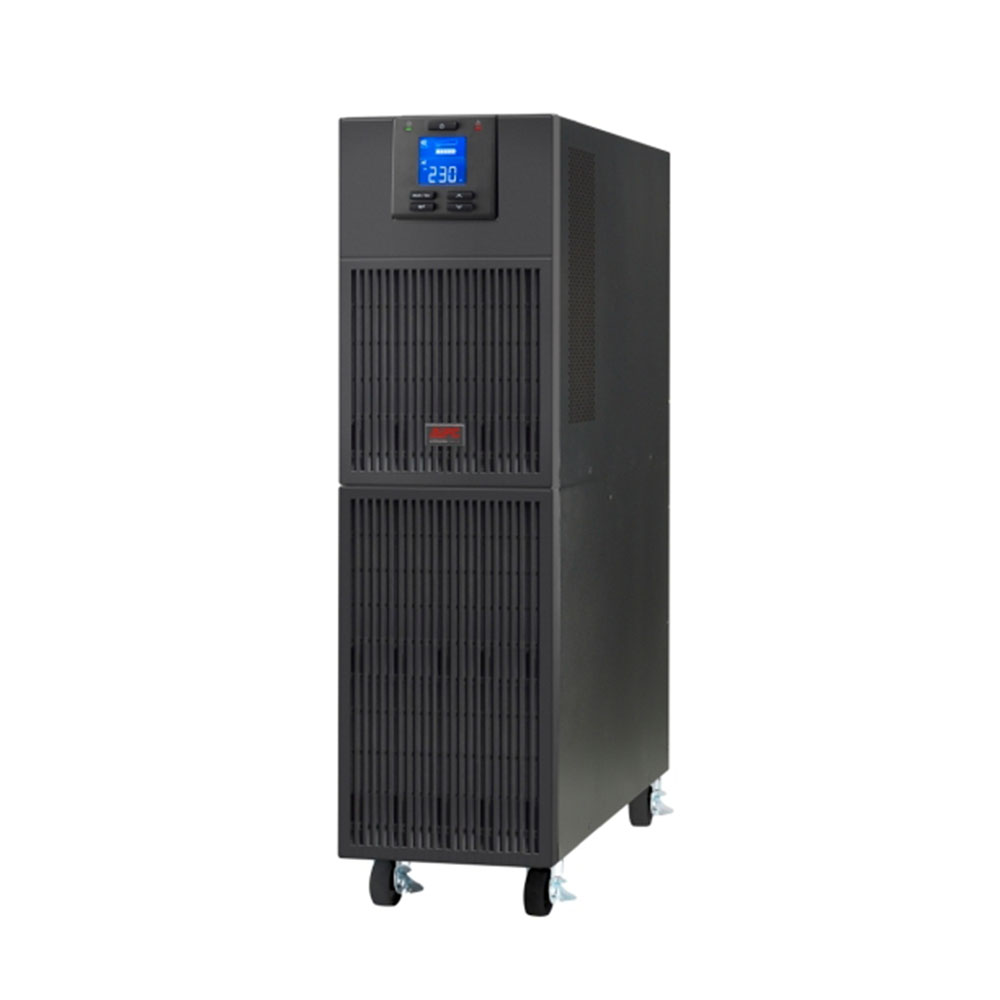

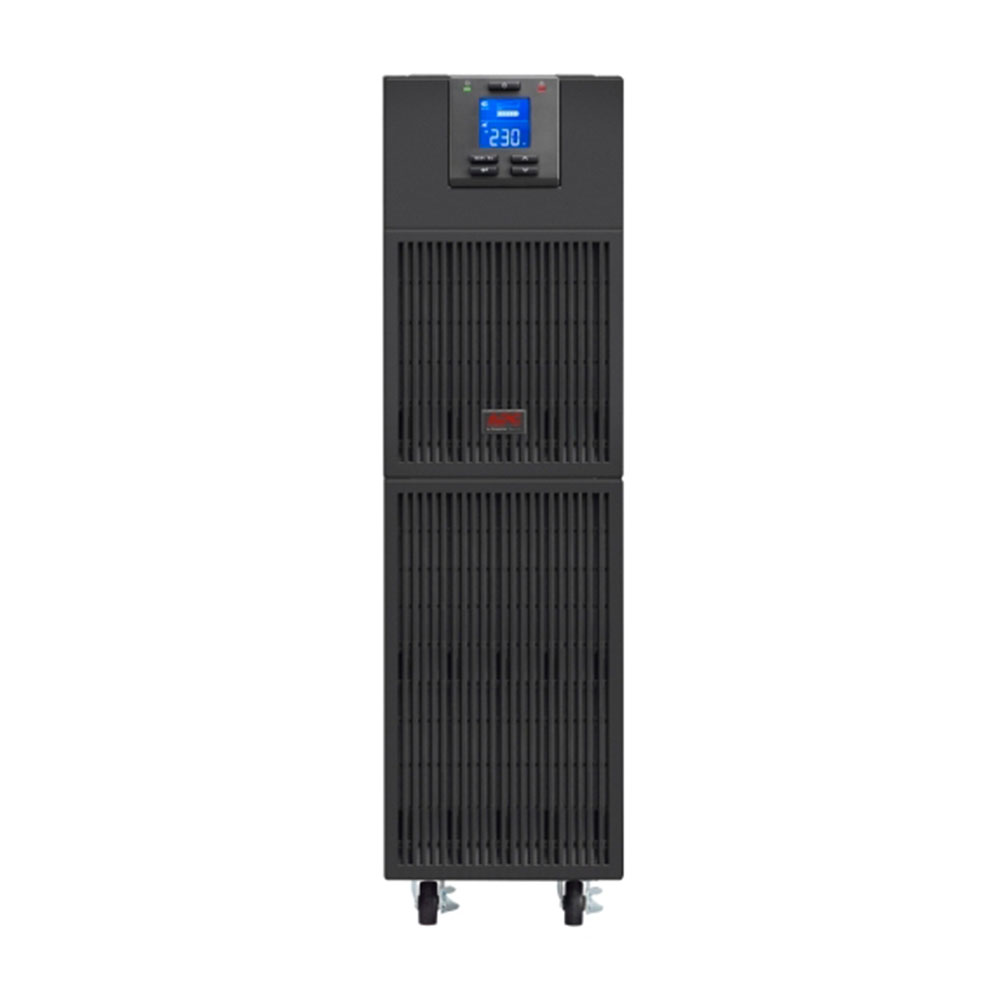

APC Easy UPS On-Line SRV 10000VA 230V
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
In stock
Compare
Description
Additional information
Reviews (0)
Manageability
-
SmartSlotCustomize UPS capabilities with management cards.
-
LCD graphics displayText and mimic diagrams that display modes of operation, system parameters and alarms.
-
Network manageableProvides remote power management of the UPS over the network.
-
Serial connectivityProvides management of the UPS via a serial port.
-
LED IndicatorsProvide easy-to-read status of the unit and utility power conditions.
Availability
-
Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.
Features
-
High efficiencyHigh efficiency rates that remain stable even at lower operating power levels
-
Input power factor correctionMinimizes installation costs by enabling the use of smaller generators and cabling.
-
Management SoftwareAllows you to easily monitor your utility power and manage your UPS.
-
SmartSlotCustomize UPS capabilities with management cards.
-
ECO ModeOperating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
-
Generator compatibleEnsures clean, uninterrupted power to protected equipment when generator power is used.
-
Wide input voltage rangeDesigned for harsh electrical environments to save battery life.
-
Intuitive LCD interfaceProvides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
-
Double conversion on-line topologyGuarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
Main Input Voltage | 230 V |
Main Output Voltage | 230 V |
rated power in VA | 10000 VA |
output connector type | Hard wire 3-wire (H N + E) 1 |
provided equipment | Basic UPS signalling RS-232 cable CD with software User manual USB cable |
Physical | |
colour | Black |
height | 68.5 cm |
width | 19 cm |
depth | 44.7 cm |
net weight | 65 kg |
mounting location | Front |
mounting preference | No preference |
mounting mode | Not rack-mountable |
USB compatible | Yes |
mounting position | Vertical |
Input | |
input voltage limits | 110-300 V half load 176-300 V full load |
number of input connectors | 1 hard wire 3-wire (1P + N + E) |
network frequency | 40-70 Hz auto sensing |
Output | |
Maximum configurable power in W | 10000 W |
output frequency | 50/60 Hz +/- 3 Hz sync to mains |
harmonic distortion | 1 % |
UPS type | Double conversion online |
Wave type | Sine wave |
efficiency | 94 % (full load) |
bypass type | Internal bypass (automatic and manual) |
crest factor | 3 : 1 |
product-brand |
---|
